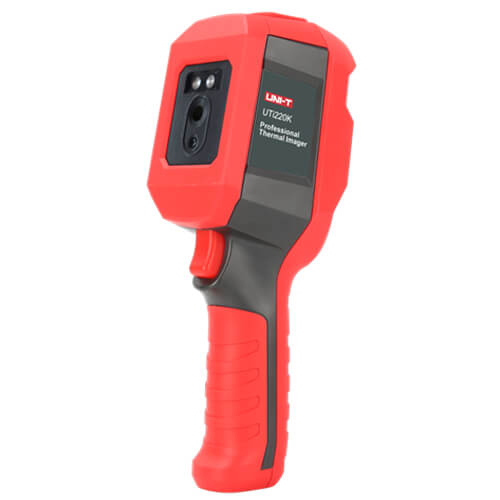

UTi220K Thermal Imaging Camera (Free Shipping by Express DHL/UPS/FED)

UTi220K Thermal Imaging Camera (Free Shipping by Express DHL/UPS/FED)


2 in stock

UTi220K thermal imaging camera can measure humanbody temperature from 30 to 45 degree at high accuracy. Contactless measuring distance can reach 1m to 2m. It is at higher resolution than UTi165K.

Device and Software Display Language: English

    FAST TEMPERATURE DETECTION – Fast temperature detection less than 500ms. Thermal imaging temperature range: 30℃~45℃. Accuracy: ±0.5℃

    HIGH TEMPERATURE ALARM – Customizable setting of high temperature alarm value to 37.3 ℃. For temperature is over 37.3 ℃, lights will be flushed, screen alert will be displayed and sound alarm will be given

    REAL-TIME IMAGE PROJECTION – Can connect the thermal imager to PC software and project the software screen to monitor (Realtime Monitoring Feature)

    VISIBLE LIGHT AND THERMAL IMAGING CAMERAS – Supports 7 different imaging modes, including visible image, thermal image and blending image. Choose the color you like!

    PC SOFT ANALYSIS – Support SD card, USB and other import methods, with powerful image processing capabilities

Scan to chat with iSecus in Whatsapp:

2 in stock

Bulk deal
Quantity Discount Discounted price
2 - 5 5% $540.55
6 - 10 10% $512.10
11 - 20 12% $500.72

Buy more qty, get better price~

SKU: UTI220K Category: Tags: , ,


Model UTi220K(Can conncet to computer)
Sensor Uncooled focal plane
Temperature range 30˚C~45˚C
Resolution 0.1˚C
Accuracy ±0.5˚C @1m
Optimal measuring distance 1m
Temperature measurement response time ≤500ms (95% of reading)
Pixel of thermal imagery 30000 (200×150)
Pixel dimemsions 12μm
Palettes Iron red, rainbow, white, black, red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy 8~14μm
Field of view (FOV) 35°(H) × 26°(V)
Instantaneous field of view (IFOV) 3.1mrad
Thermal imaging sensitivity <100mk
Frame rate <9Hz
Temperature display Center temperature measurement and high temperature tracking (default)
Image format BMP
Buttons 10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button
Image modes Thermal imagery, digital camera (visible light), fushion
Temperature measuring point Besides central point, 3 temperature measuring points can be added
Visible light
Resolution of visible light 640×480
Display resolution 320×240
Mixed setting 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery)
PC analysis software (PC)
Real-time image transmission √ (PC software image projection)
Data communication Type-C USB
Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default)
Service time ≧6 hours
Charging time ≦5 hours
Charging voltage/current 5V/2A
Image storage Micro SD card
General Characteristics
Power A single Li-ion 3.7V/5000mAh 26650 battery
Display 2.8″ TFT LCD
Product color Red & grey
Product size 236mm x 75.5mm x 86mm
Standard accessories Manual, Type-C USB cable, 16GB TF card (NOT including Tripod)
Standard carton gross weight 2.2kg
