UTi260K Thermal Imager for Measuring Humanbody Temperature with PC Monitoring 256*192

UTi260K Thermal Imager for Measuring Humanbody Temperature with PC Monitoring 256*192


8 in stock

(3 customer reviews)

Device and Software Display Language: English

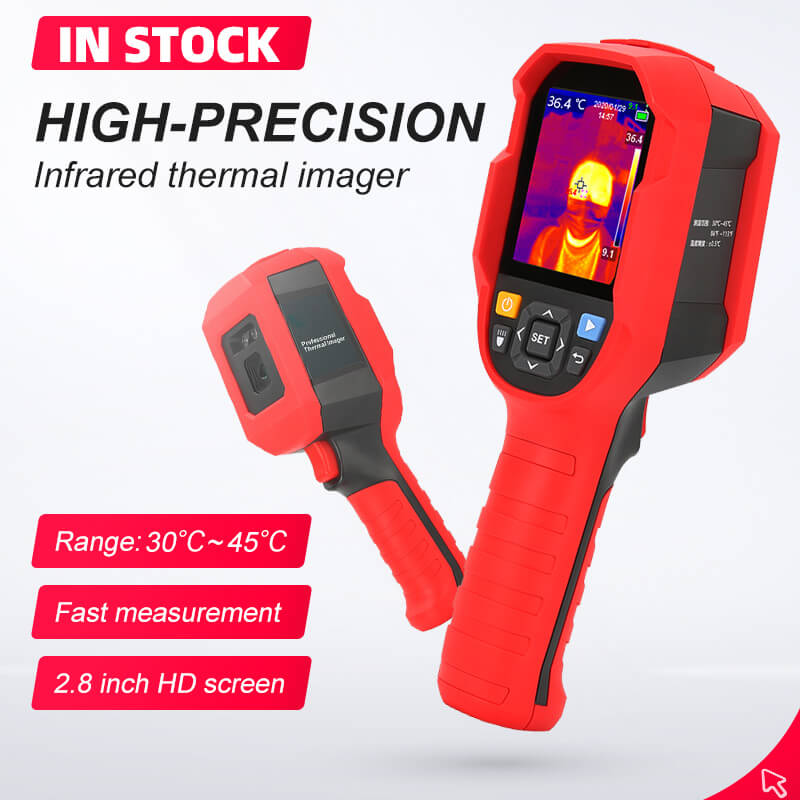

FAST TEMPERATURE DETECTION – Fast temperature detection less than 500ms. Thermal imaging temperature range: 30℃~45℃. Accuracy: ±0.5℃

HIGH TEMPERATURE ALARM – Customizable setting of high temperature alarm value to 37.3 ℃. For temperature is over 37.3 ℃, lights will be flushed, screen alert will be displayed and sound alarm will be given

REAL-TIME IMAGE PROJECTION – Can connect the thermal imager to PC software and project the software screen to monitor (Realtime Monitoring Feature)

VISIBLE LIGHT AND THERMAL IMAGING CAMERAS – Supports 7 different imaging modes, including visible image, thermal image and blending image. Choose the color you like!

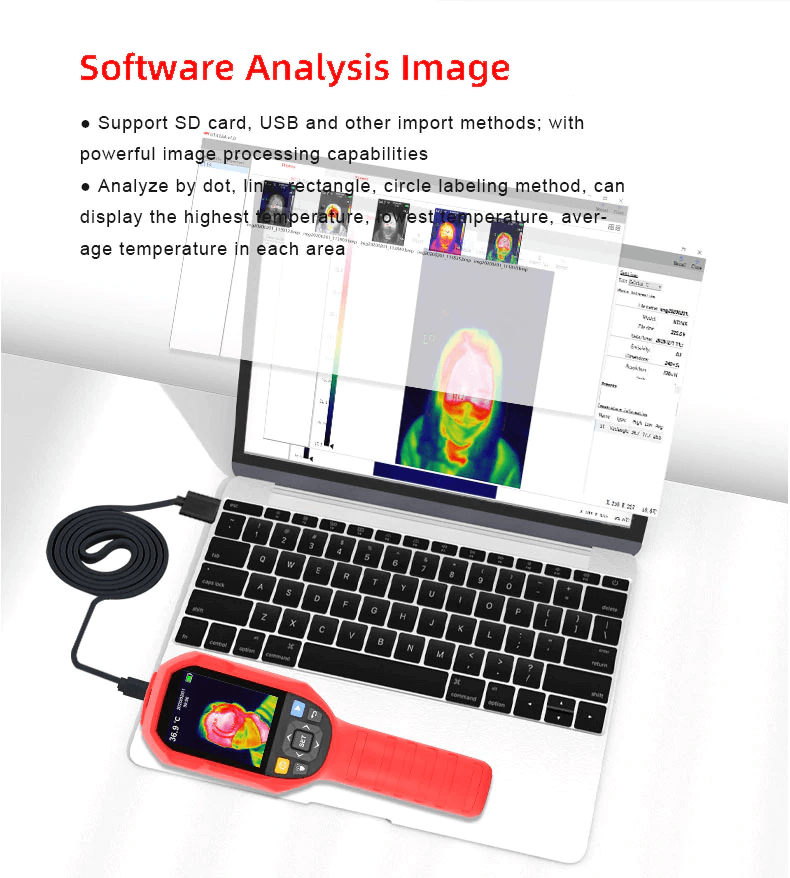

PC SOFT ANALYSIS – Support SD card, USB and other import methods, with powerful image processing capabilities

♦ Ship From: China
♦ Despatch: Usually within 2 business days
♦ Shipping: Free Shipping to worldwide by E-post (15 to 30 days for arrival) for order over USD99. Free Shipping by Express (5 to 10 days for arrival) for order over USD500.

SAFE & SECURED to buy from iSecus Eshop

√ Buyer Protection
♣ Full Refund If you don’t receive your order
♣ Full or Partial Refund , If the item is not as described

8 in stock

Bulk deal
Quantity Discount Discounted price
2 - 5 5% $664.05
6 - 10 10% $629.10
11 - 20 12% $615.12

Buy more qty, get better price~

SKU: UTI260K-1 Categories: , Tags: , ,

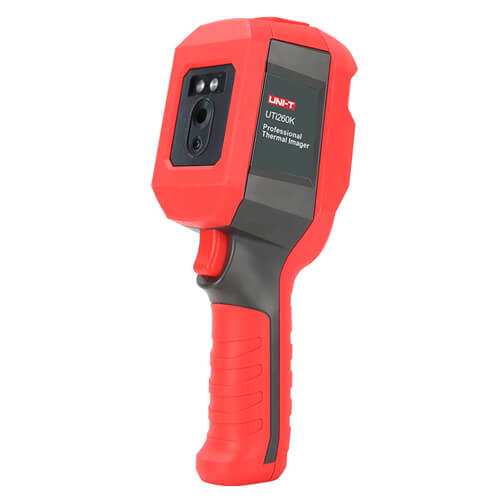

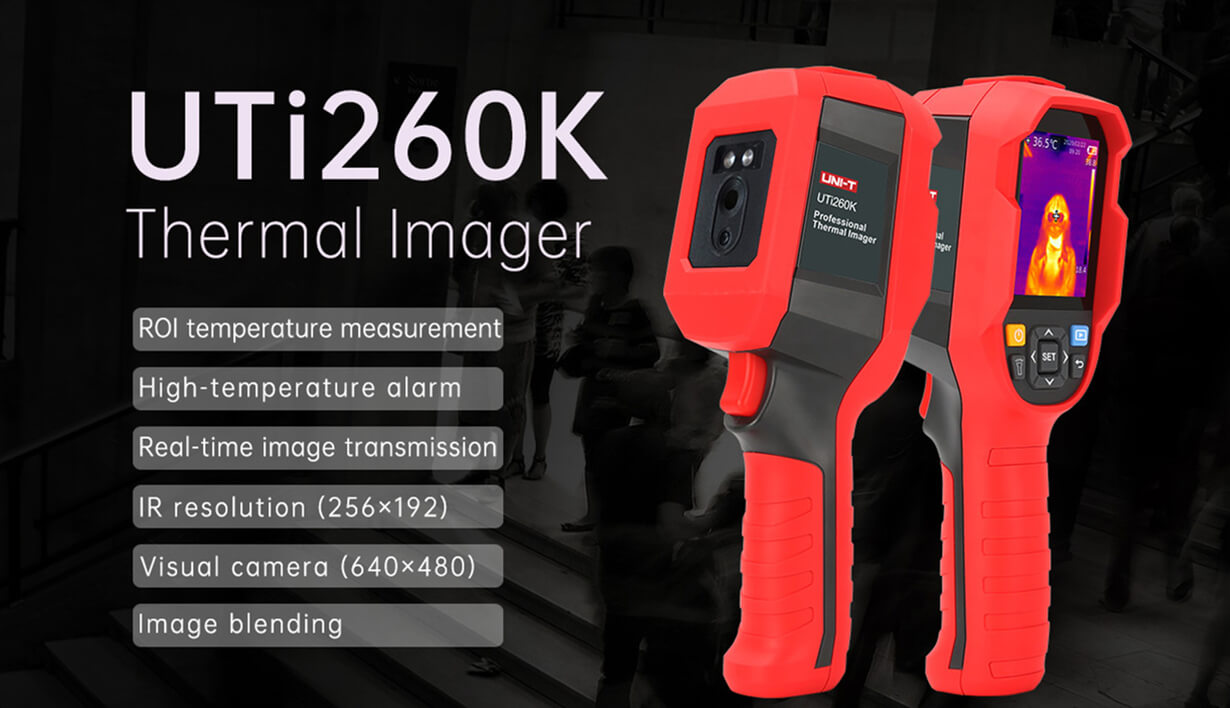

UTi260K thermal imaging camera can measure humanbody temperature from 30 to 45 degree at high accuracy. Contactless measuring distance can reach 1m with high accurate measuring result. Quality and performance is very stable.

SensorUncooled focal plane
Temperature range30˚C~45˚C
Accuracy±0.5℃ (@ 25℃ ambient temperature)
Optimal measuring distance1m
Temperature measurement response time≤500ms (95% of reading)
Thermal resolution49152 (256×192)
Pixel dimemsions12μm
PalettesIron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)3.8mrad
Thermal imaging sensitivity<50mk
Frame rate<25Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Image modesThermal camera, visible camera, image blending
Temperature measuring pointBesides central point, 3 temperature measuring points can be added
Visual camera
Resolution of visible light640×480
Display resolution320×240
Image blending0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)
Real-time image transmissionPC software image projection

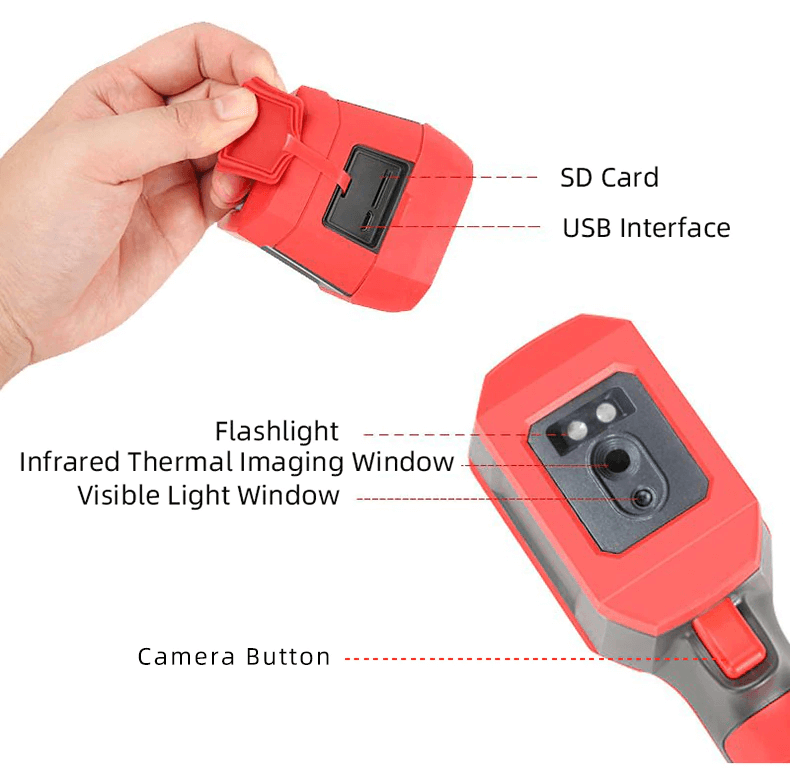

Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Battery life≥6 hours
Charging time≦5 hours
Charging voltage/current5V/2A
Image storage16G Micro SD card
General Characteristics
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey

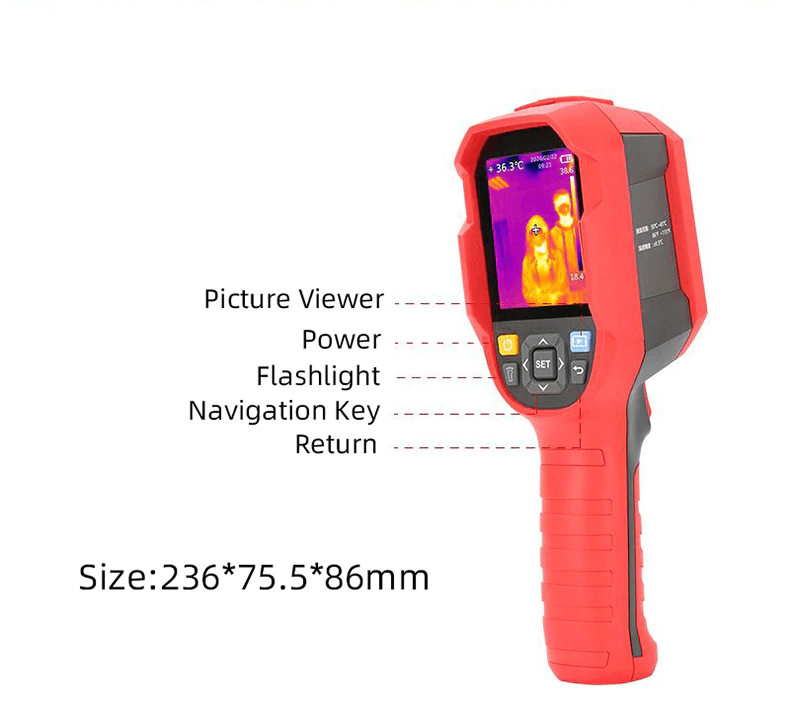

Product size236mm x 75.5mm x 86mm

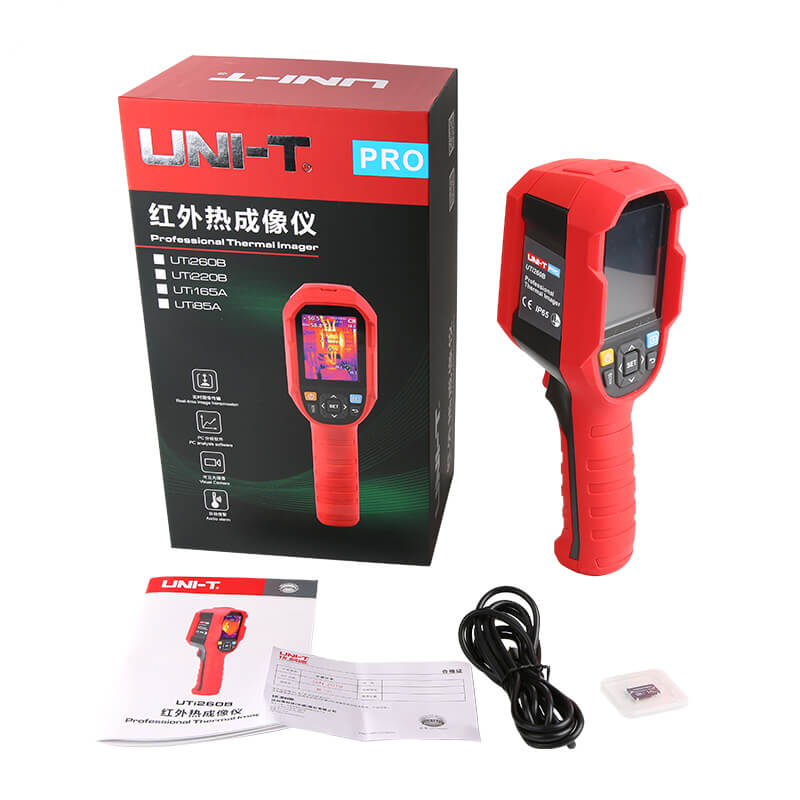

Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg

Additional information

Weight 1.5 kg

3 reviews for UTi260K Thermal Imager for Measuring Humanbody Temperature with PC Monitoring 256*192

Based on 3 reviews
5 star
4 star
3 star
2 star
1 star
  1. Morris

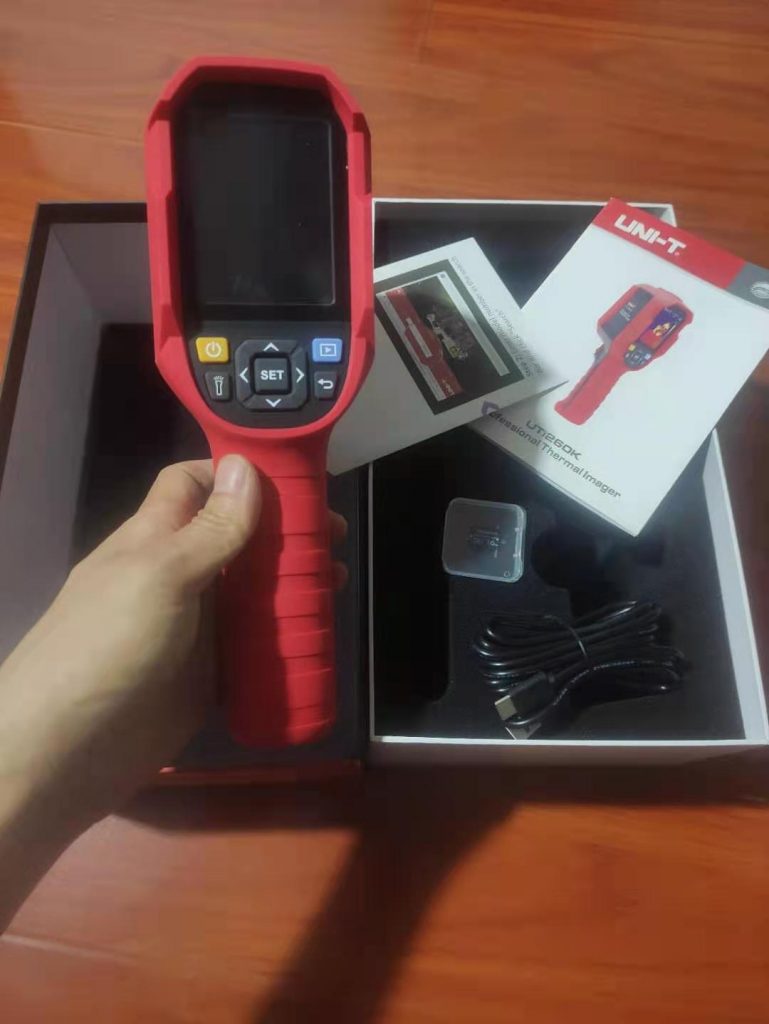

    Really good and clear picture! i have been using it for a while now and works very good. Measures temperature accurately. The supplied USB-C cable is surprisingly long (I like that) and it comes with 32G microSD card. Easy to install on tripod and connect to computer. Sell made shipment fast after payment and I got it after 1 week. Good serller, highly recommended. 🙂

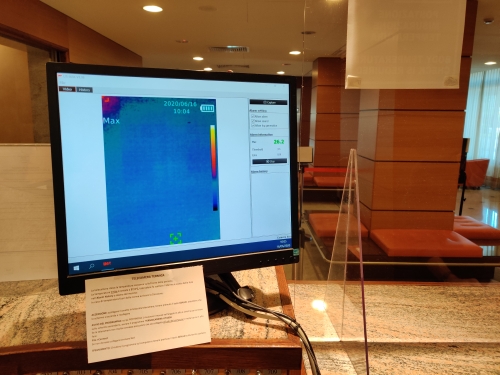

    Image #1 from Morris

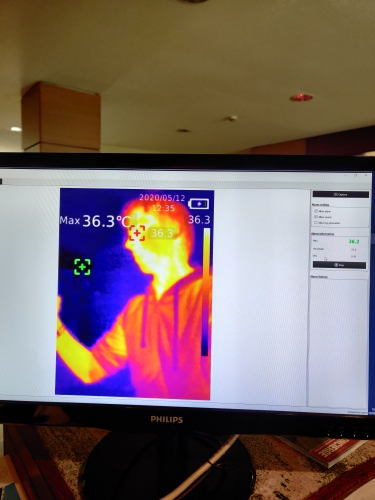

    Image #2 from Morris

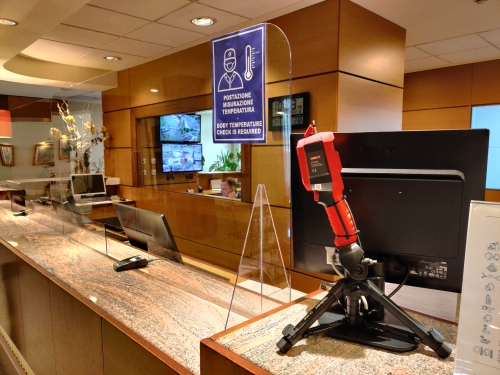

    Image #3 from Morris
  2. Fernando

    The seller is a very professional team. I am very happy with the fast shipment. Got exactly what I want. 100% recommended.

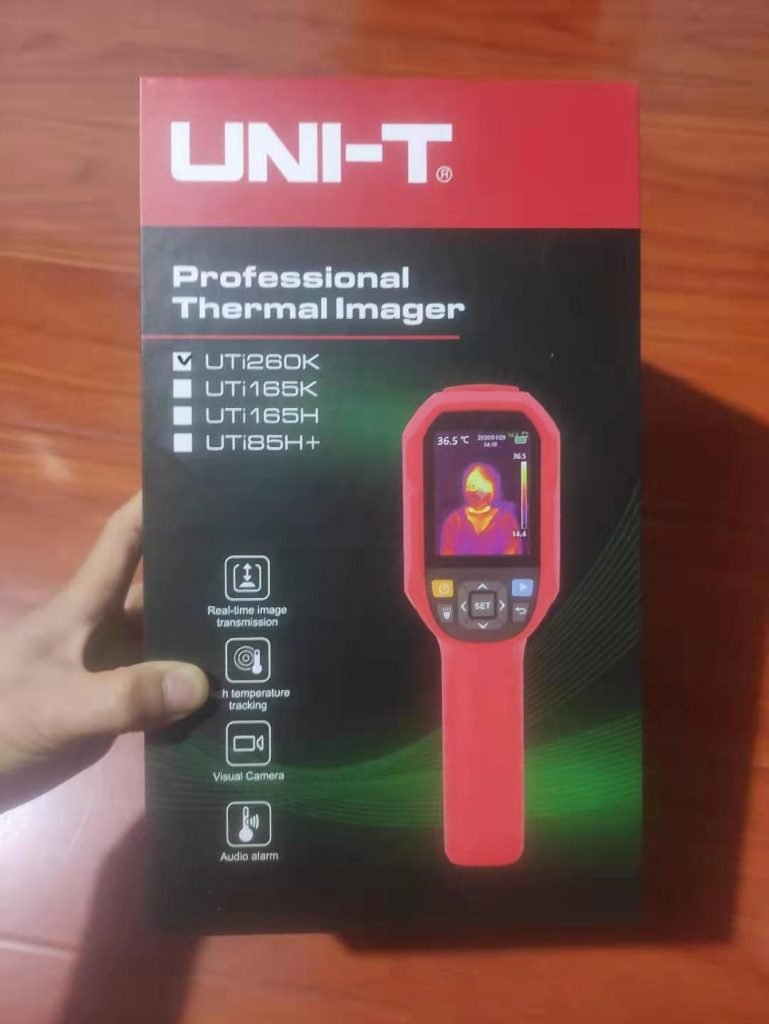

    Image #1 from Fernando
    Image #2 from Fernando
  3. Jeon KC

    Fast shipment and arrival by express. Camera works very well, high resolution. Can connect to PC software for realtime monitoring. Very convenient to use and operate. Highly recommended!
