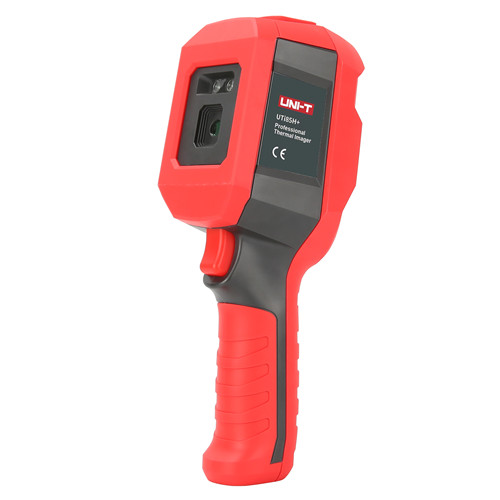

UTi85H+ Thermal Imaging Camera 80*60 (Stock Camera, Free Shipping by Express DHL/UPS/FED)

UTi85H+ Thermal Imaging Camera 80*60 (Stock Camera, Free Shipping by Express DHL/UPS/FED)

$399.00

10 in stock

UTi85H+ thermal imaging camera can measure humanbody temperature from 30 to 45 degree at high accuracy. Contactless measuring distance can reach 1m to 2m. It is made by UNI-T factory who is a wellknown brand with more than 20 years experience in the measuring industry. Quality and performance is very stable.

Device and Software Display Language: English

    EMBEDDED BUZZER – To give sound alarm from device directly without using PC Software

    FAST TEMPERATURE DETECTION – Fast temperature detection less than 500ms. Thermal imaging temperature range: 30℃~45℃. Accuracy: ±0.5℃

    HIGH TEMPERATURE ALARM – Customizable setting of high temperature alarm value to 37.3 ℃. For temperature is over 37.3 ℃, lights will be flushed, screen alert will be displayed and PC sound alarm will be given

    REAL-TIME IMAGE PROJECTION – Can connect the thermal imager to PC software and project the software screen to monitor (Realtime Monitoring Feature)

    WIDELY APPLICATION THERMOMETER – Widely used in airports, metro stations, factories, schools, office buildings and residential areas. User-friendly operation and easy to use.

    PC SOFT ANALYSIS – Support SD card, USB and other import methods, with powerful image processing capabilities

    Scan to chat with iSecus in Whatsapp:



10 in stock

SKU: UTI85H Categories: , Tags: ,

Description

Model Number UTi85H+ UTi165K
IR resolution 80*60 (4800) 160*120 (19200)
Buzzer alarm NA
Frame rate ≤9Hz ≤9Hz
Visual light/Image blending NA
Real-time image transmission real-time image projection through PC software
Measuring points NA 3 extra measuring points aside from center point
FOV 51°*38° 56°*42°
IFOV 11.1mrad 6.1mrad
Thermal sensitivity ≤150mK <50mK
Temperature range 30°C ~ 45°C/86°F – 113°F
Accuracy ±0.5°C/±0.9℉
Resolution 0.1°C /0.2℉
Optimal measuring distance 1m
Response time ≤500ms
Auto power off Selectable: 5min, 10min, 30min (default) off
PC analysis software
Data transmission Type-C USB
Charging voltage/current 5V/2A
Battery 3.6V/5000mAh rechargeable Li-ion battery
Battery life ≥6h
Charging time 4h
Image storage Micro SD card
Operating environment 15°C~ 30°C (59°F~ 86°F),<85%Rh(Non-sondensing)
Storage environment -20°C~ 60°C (-4°F~ 140°F) <85%Rh(Non-sondensing)
Operating altitude ≤2000m
Accessories USB data cable (2m), 16G SD card package

Additional information

Weight 9 kg
