ZK8500 Fingerprint Scanner and RFID Card Reader

ZK8500 Fingerprint Scanner and RFID Card Reader


ZK8500 is an advanced Fingerprint Scanner embedded with RFID Card Reader, suitable for time attendance and access control system. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.

    Card issue and enroll user fngerprint
    Read ID card number (ZK8500-ID) or Mifare card (ZK8500-MF)
    High-performance optical fngerprint sensor
    High quality industrial-class ABS plastic material
    LED indicates the status of the device
    Available SDK for further development

    Shipment Place: Shenzhen, China

    Shipment Date: Within 1 week after payment

SKU: ZK8500 Category: Tag:


ZK8500 is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco Software. This device can capture fingerprint image or read card serial number (IDor Mifare) directly and upload to the system by USB interface. ZK8500 would save money as it can work as ZK4500+CR10E or ZK4500+CR10M, and also can save time, especially when a high volume of users will be using ZKTeco systems on site.

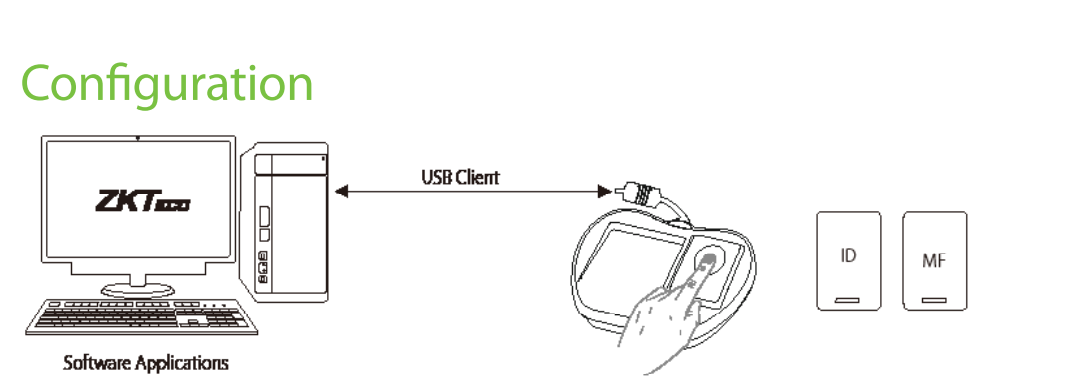

ZK8500 Fingerprint Scanner and RFID Card Reader Connection Diagram

ZK8500 Fingerprint Scanner and RFID Card Reader Connection Diagram


Model Name ZK8500R
Material Optical
Flash 16 KB
Image Quality 0.3 megapixels CMOS
Sunlight Operation White filed, General Sunlight
Water Splash YES
Card Reader 125KHz EM (ZK8500-ID) or 13.56MHz Mifare (ZK8500-MF)
Operating System Windows2000/XP/2003/Vista/7/8(32/64bit)
LED Green
Power Voltage 5V (USB)
Power Current 300mA
Communication USB 2.0/ USB1.1/ USB1.0
Interface Socket USB Type A
Image Resolution 500 dpi
Effective Collecting Area 13.24 * 15.7 mm
Collecting Area 15.4*18 mm
Image Size 280*360 pixel
Dimension 124.5 * 102 * 34mm (L*W*H)
Gray Level 256
Weight 0.27kg
Operating Environment -20 °C   ~   +50 °C; 90% r.h


Additional information


ZK8500-ID, ZK8500-MF
