KR100 Card Reader
$13.99 – $17.99
â—†Read 125KHz Proximity ID card number(KR100E)
♦ Ship From: China
SAFE & SECURED to buy from iSecus Eshop
Description

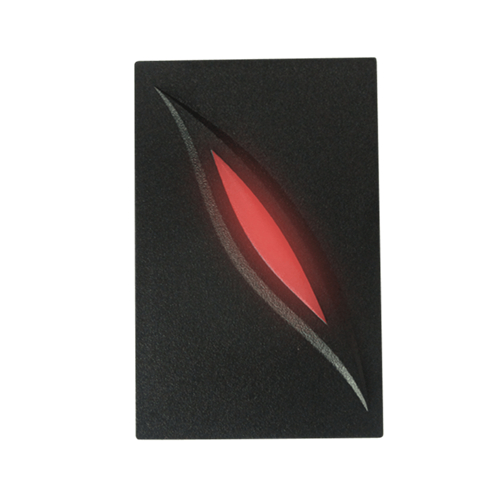

KR100 series is a waterproof card reader for access control, with elegant and compact design. It supports standard wiegand communication ports, can connect with inbio/C3 control panels, or any other control panel from third parties.
Specification:
| Model | KR100E: 125kHz Proximity Card Reader KR100M: 13.56MHz Mifare Card Reader |
| Read Range | KR100E Up to 10 CM / KR100M Up to 5 CM |
| Reading time ( Card ) | 300 ms |
| Power | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Card Format | 26bit Wiegand (E) 34bit Wiegand (M) |
| Output Pin Format | 8 bits |
| LED indicator | 2 Color LED Indicators (Red and Green) |
| Beeper | yes |
| Operating temperature | -10° to +70°C” |
| Operating Humidity | 10% to 90% (relative humidity non-considered) |
| Color | Black |
| Material | ABS+PC with texture |
| Dimension: (WxHxD) mm | 77.5×42.8×16.5 |
| Weight | 50g |
| Index of Protection | IP65 |
Additional information
| Model | KR100E, KR100M |
|---|
