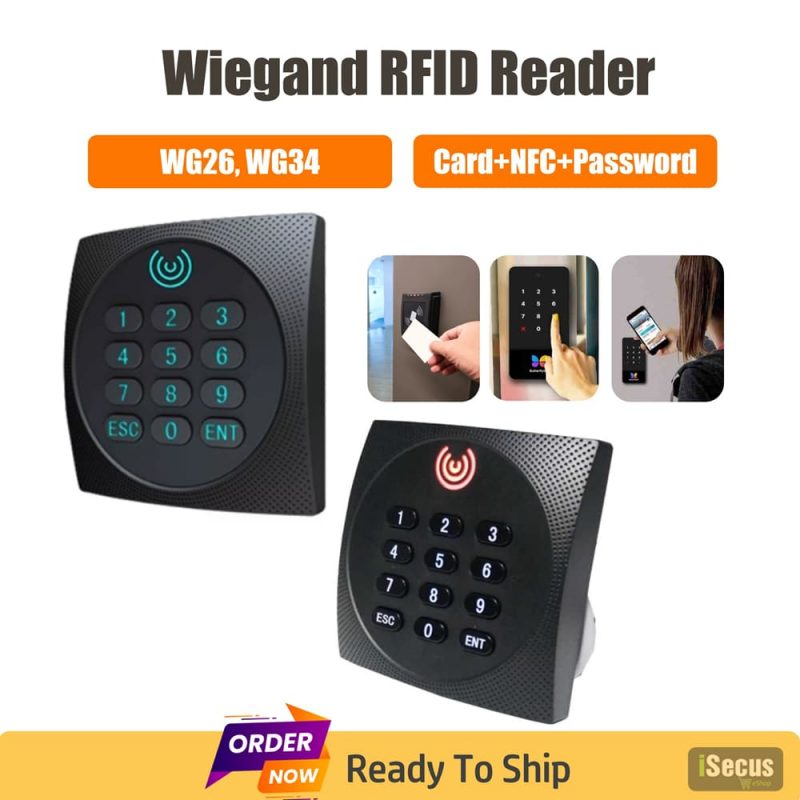

KR602E KR602M RFID Wiegand Reader

Sale!

KR602E KR602M RFID Wiegand Card Reader For Access Control-P1

Stock

SAVE 36%

KR600E KR600M Wiegand Card Reader Featured Pic

KR602E KR602M RFID Wiegand Reader for Access Control-P2

KR602E KR602M RFID Wiegand Reader for Access Control-P3

KR602E KR602M RFID Wiegand Reader

Price range: $17.99 through $19.99

◆KR602E RFID Reads 125KHz Proximity ID card number
◆KR602M RFID Reads 13.56MHz Proximity MF card number and Cellphone NFC
◆ID Card Reader Wiegand 26; MF Card Reader Wiegand 34 output
◆Keypad for password
◆Dimension: 868615mm
◆Working Voltage and Current: 12V DC/ ≤50mA
• Waterproof

♦ Ship From: China
♦ Dispatch: Usually within 2 business days
♦ Shipping: Free Shipping to worldwide by E-post (15 to 30 days for arrival) for order over USD50. Free Shipping by Express （5 to 10 days for arrival) for order over USD500.

SAFE & SECURED to buy from iSecus Eshop

√ Buyer Protection
♣ 100% Brand New Item shipped
♣ Full Refund If you don’t receive your order
♣ Full or Partial Refund, If the item is not as described

Model

Clear selection

SKU: kr602 Category: Uncategorized

Description

KR602E KR602M RFID Wiegand Reader for Access Control System. It supports standard wiegand communication ports, can connect with inbio/C3 control panels, or any other control panel from third parties.

If you need 125Khz ID reader, please choose KR602E

If you need 13.56Mhz Mifare reader, please choose KR602M

Specifications:

KR602M RFID Frequency: 13.56Mhz High Frequency

Supported Cards: Mifare card like S50, S70, Desfire, Ntag213/216, Ultralight

KR602E Frequency: Standard 125khz low Frequency (Not including HID)

Read Range :
KR602M@ Up to 5CM
KR602E@ Up to 10CM
Reading Time: ≤300ms
Input Port: External LED Control, External Buzzer Control
Material: ABS+PC with texture
Output Format:
KR602M @ 34bit Wiegand (Default)
KR602E @ 26bit (Default)
Power/Current: DC 6-14V / Max.70mA
LED:Red and Green LEDs
Operating Temperature: -20°C to 65°C(-10° to +70°C)
Operating Humidity: 10% to 90% relative humidity non-condensing
Beeper: Yes
Index of Protection: KR602-E/M: IP64
Size: 868615mm
Packing: 1594cm

Want RFID cards? Click to buy here.

Buy from Aliexpress

Additional information

Model	KR602E, KR602M
