FR1300 Fingerprint Reader for Access Control

FR1300 Fingerprint Reader for Access Control


FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and
fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

  • Multiple Verification-It supports Fingerprint and RFID verfication
  • IP65 Waterproof Level-It can be used as slave reader to work in outside environment
  • Fast Recognition Speed-It can recognize Fingerprint and RFID at fast speed, less than 1 second.
  • Slave Function-The device can connect with ZK access control or control panels to work as slave device
SKU: FR1200-1 Categories: ,

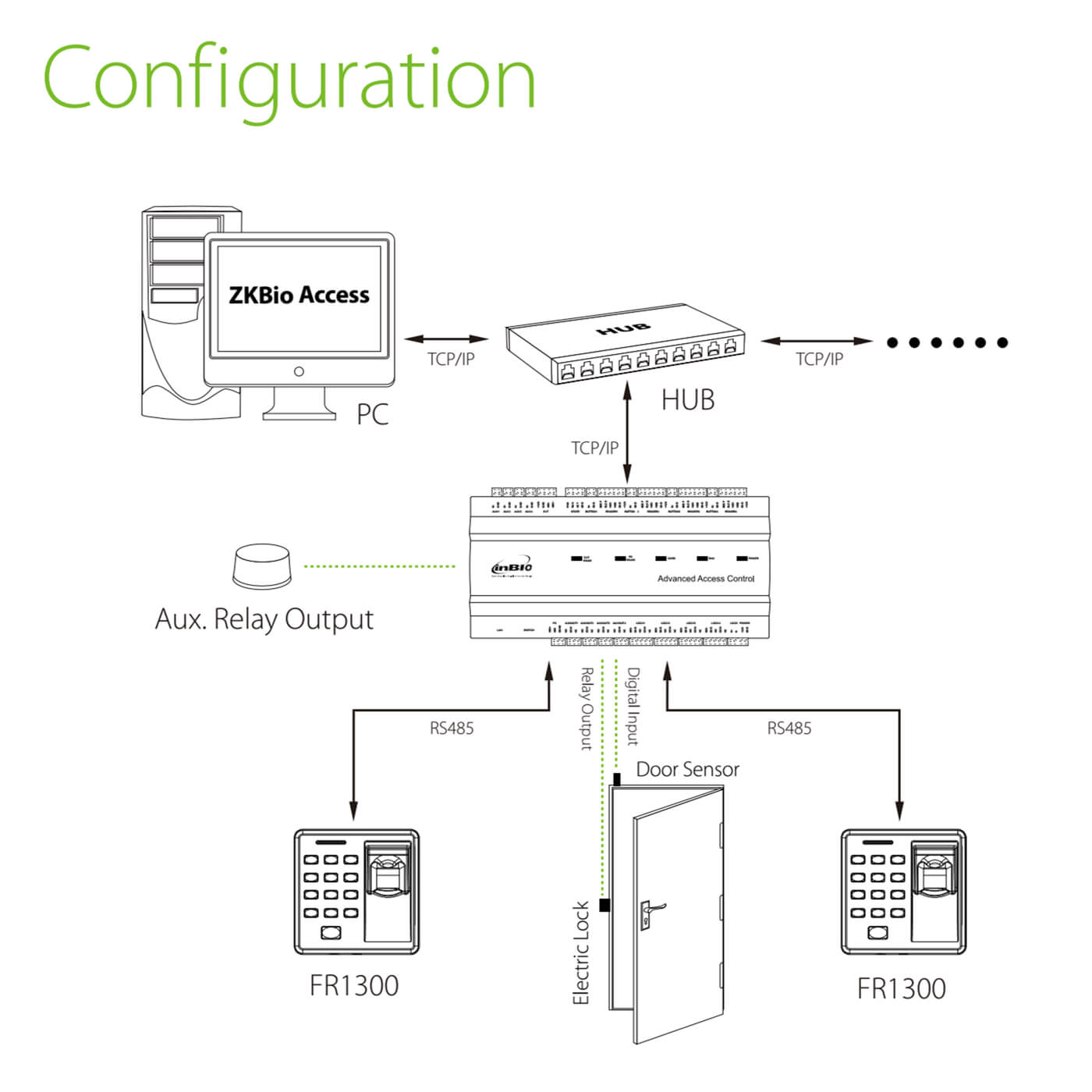

FR1300 Connecting to FP Access Control
FR1300 Connecting to FP Access Control

Sensor ZKTeco Infrared Optical Sensor
Communication RS485
Built-in Card Reader 125 kHz EM card reader, Optional MF Card reader
Optional Function 13.56MHz MF Card Module
Power Supply DC 12V
Operating Temperature 0°C ~ 45°C
Operating Humidity 20% ~ 80%
Dimension 88mm×88mm×33.6mm
