ZK4500 USB Fingerprint Scanner
$68.00
• High-performance, maintenance-free optical fngerprint sensor.
♦ Ship From: China
SAFE & SECURED to buy from iSecus Eshop
Description

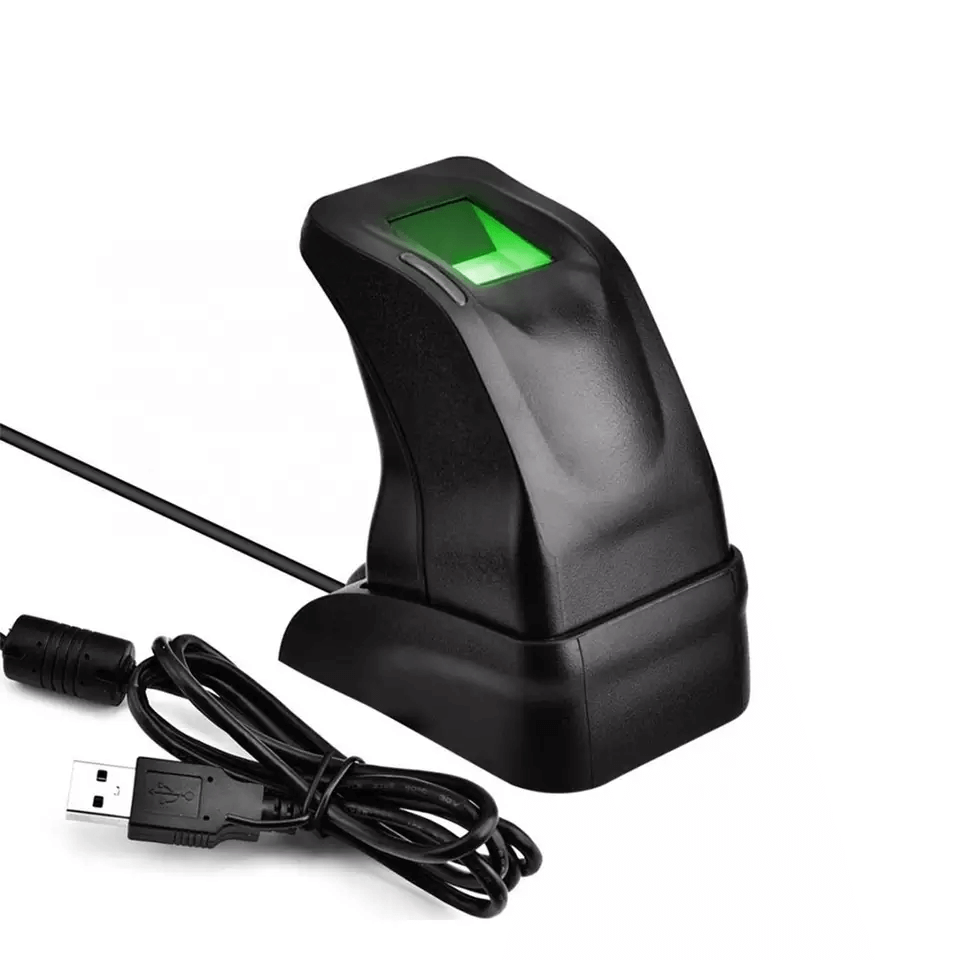

ZK4500 is a stable and excellent fingerprint scanner. The device can capture fingerprint image and upload to the PC by USB interface. It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS. We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social
insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.
Specification:
| Model Name | ZK4500 |
| Material | Optical |
| CPU | 120MHz DSP |
| Flash | 16KB |
| SoC | RTOS[image out only] |
| Image Quality | 0.3 million pixels CMOS |
| Encrypted Fingerprint Data | Yes |
| Dry, Wet, or Rough Fingerprints | General Level |
| Power Consumption | 5V:200mA Scanning; 5V:90mA idle (waiting for finger) |
| Live Fingerprint Detection | NO |
| LED | Green |
| Product Certifications | FCC, CE |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500 dpi |
| Effective Collecting Area | 13.24 * 15.7 mm |
| Collecting Area | 15.4*18 mm |
| Image Size | 280*360 pixel |
| Dimension | 65.5 * 48 * 79.8mm (L*W*H) |
| Image Format | BMP |
| Template | Finger V10.0 |
| Template Size | <2KB, (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Weight | 0.25kg |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
