ZKTeco QR500 QR & NFC Reader for Access Control (Stock+Promotion)

ZKTeco QR500 QR & NFC Reader for Access Control (Stock+Promotion)

$99.00

(3 customer reviews)

ZKTeco QR500 reader supports QR Barcode, NFC and 13.56MHz card reading at fast speed. It is compatible with ZKTeco C3 and Inbio Controller, or work with third party access control system.

Availble Color: Black Case (QR500-B),  White Case(QR500-W)

  • Multiple Verification-Reads QR Code, MF Cards, NFC, etc
  • User-friendly Power input ports-Can be powered from USB or DC power adapter
  • Fast Recognition Speed-Can read QR code, MF card, NFC at less than 80ms on average.
  • Multiple Communication Ports-Supports Wiegand input/output, RS485 and USB connection with thirdparty access control system

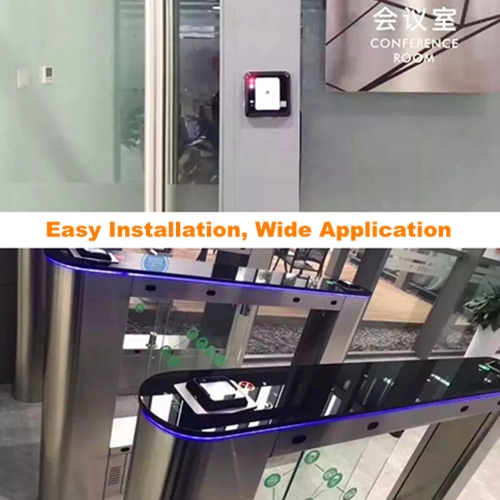

  • Wide Application Areas-It is applicable in community management, visitor management, hotel management, unmanned supermarkets
  • What will you get after purchase: QR Reader, USB Cable, English User Manual(Paper Version), Demo Software. Fast shipment could be arranged (Less than 1 week).

    If you need more than 10 pcs, please contact us in whatsapp (0086.185.7662.7199) or email (eshop@isecus.com) for discount.

SKU: QR500 Categories: , Tag:

Description

ZKTeco QR500 is a QR, NFC and MF(13.56Mhz) card Reader for intelligent access control system. It has fast scanning speed, high recognition rate, High compatibility, and can be connected to any access controller that supports Wiegand input. It also support the RFID Functions, like 13.56MHz Mifare Ultralight / DESFire EV1,NTag, So that it can be applied in community management, visitor management, hotel management, unmanned supermarkets and so on.

Model QR500
International Standard ISO/IEC 14443A, RS485 Protocol
Barcode Supported QR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/Code 93
Card Supported MF Ultralight, MF1(S50,S70), DESFire EV1, NTag, NFC
Operation Frequency 13.56MHz
Power DC 12V(±5%), USB 5V
Reading Distance QR≥5CM, RFID CARD≥4CM
Communications Wiegand(Default), RS485, USB
Operating Temperature -10℃~+50℃
Operating Humidity 20% ~ 80%
Dimension 86mm×86mm×50mm
Reading Range 360°, incline ±65°, deflexion ±60°
Reading Speed 80ms (On average)
USB Cable 1M

ZKTeco QR500 QR Reader Datasheet

ZKTeco QR500 QR Reader Connection Diagram

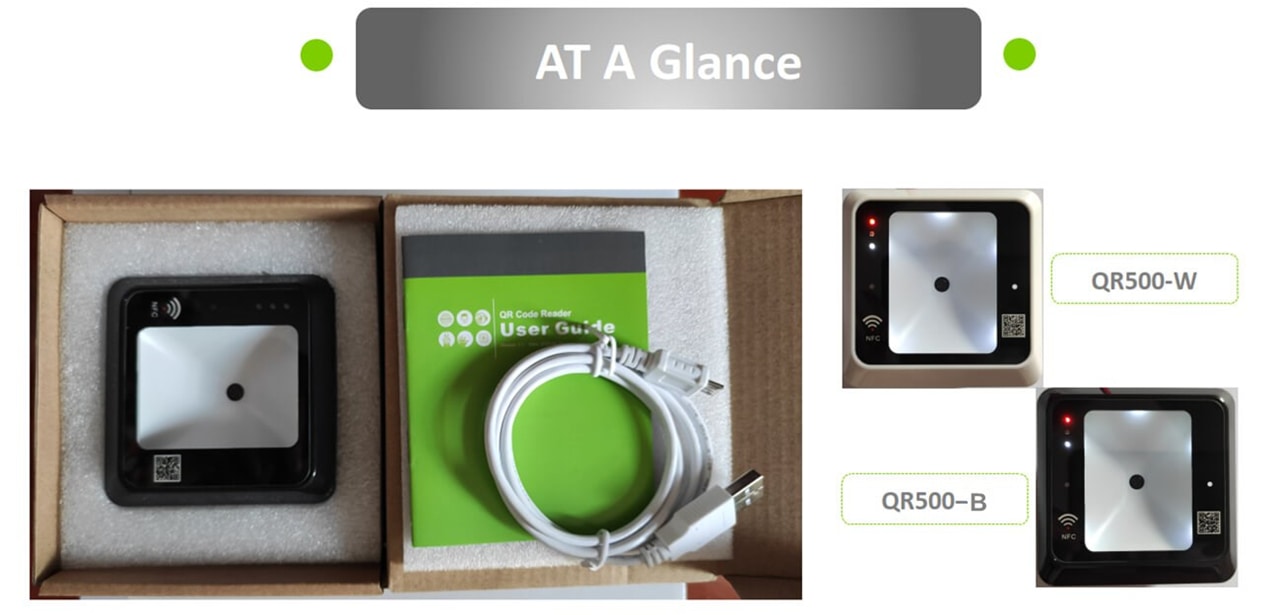

QR500 QR Reader with Wiegand and RS485 for Access Control-S

Demonstration Videos:

Download:

QR500 Datasheet

QR500 User Manual

QR500 Demo Software

Additional information

Weight N/A
Color

Black QR500-B, White QR500-W
